Drawing ATL-OVL-01 Windows ⇄ Linux overlap Issued 2026-07-30 Rev. C

Living in
both OSes

General arrangement for running one developer workstation across two installs for months without the setup rotting.

Scale1 asset : 1 conduit

Conduits12 + 1 omitted

Abandoned routes5

References37

Depthsurvey

Sheet1 of 1

General note — read before building

Every asset class gets exactly one source of truth and a replicator that understands the OS difference. One canonical copy in a neutral store; each OS materialises it locally; edits go back to the store, never sideways between installs. Never a shared partition holding a working tree ^[10], never a cloud-sync folder holding a .git directory ^[16].

Key

Legend

▭ TerminalHost-local materialisation. Editable, disposable, rebuildable.

◻ JunctionThe neutral store. The only editable truth.

⌁ ReplicatorThe tool that knows the OS difference.

⊗ SeveredRoute drawn only so it is not built by accident.

⚠ CautionWorks, with a documented trap on one side.

Host A · Windows

Incumbent. Owns Outlook, Teams desktop, DPAPI, Credential Manager, NTFS.

Host B · Linux

Candidate. Owns ext4, case sensitivity, the exec bit, LF, a real kernel.

Plan 1

Conduit schedule

One row per asset class

Read each row left-to-right: what exists on Windows, what the single source of truth is, what replicates it, what exists on Linux. The junction is the only box you edit.

C-01

Code & repositories

Spec'd

Host A terminal

C:\src\<repo> — native NTFS, cloned locally

Source of truth

Git remote (GitHub, Gitea)

⌁ Replicatorgit clone natively on each OS, into a native filesystem

Host B terminal

~/src/<repo> — ext4, cloned locally

NoteTwo working trees, one remote. This is the boring answer and it is correct. Under WSL2 the same rule holds for the same reason — the tree lives on the Linux side, because crossing /mnt/c is 2–10× slower and git, which stats thousands of files, is the worst-affected workload ^[36]^[37].

C-02

Repo-level behaviour

Spec'd

Host A terminal

CRLF checkout where the repo says so

Source of truth

.gitattributes, committed

⌁ ReplicatorGit itself enforces it identically on both installs

Host B terminal

LF checkout where the repo says so

Note* text=auto plus explicit rules for binaries and shell scripts; run git add --renormalize . once after adding it. Per-machine core.autocrlf cannot be enforced across machines and is now regarded as the cause rather than the cure ^[14]. Leave core.fileMode at its default true — you only disable it to paper over a filesystem that cannot represent the bit ^[9].

C-03

Dotfiles

Spec'd ⚠

Host A terminal

%USERPROFILE% targets, Windows paths, Windows Terminal

Source of truth

chezmoi source repo (private git) ⭐ 21k

⌁ Replicatorchezmoi apply, one templated file branching on .chezmoi.os ^[2]

Host B terminal

$HOME targets, XDG paths, the Linux terminal

NoteWhen a config genuinely must differ per OS it is not two files — it is one templated file with a per-OS branch. ⚠ On Windows, symlink creation needs developer mode or SeCreateSymbolicLinkPrivilege, and elevated setup scripts need Start-Process -Wait or chezmoi races ahead ^[2]. .chezmoi.kernel.osrelease separates WSL from bare Linux if you end up with three environments rather than two ^[2].

C-04

Machine-local git config

Spec'd

Host A terminal

Rendered ~/.gitconfig + per-context includes

Source of truth

One ~/.gitconfig template with includeIf

⌁ Replicatorchezmoi writes the includes; git resolves them per directory ^[9]

Host B terminal

Rendered ~/.gitconfig + per-context includes

NoteincludeIf "gitdir:~/work/" makes work vs personal signing keys and emails follow the directory, on both OSes, from a single file ^[9]. No duplication, no per-machine drift.

C-05

Secrets & passwords

Spec'd

Host A terminal

Vault CLI + agent. DPAPI blobs stay where they are — they do not travel.

Source of truth

Password-manager vault (1Password, Bitwarden, pass)

⌁ ReplicatorCLI + agent on both OSes; chezmoi reads secrets at apply time ^[3]

Host B terminal

Vault CLI + agent. Re-authenticate; never export.

NoteThe vault is the only truly OS-neutral secret store — the OS keyring is not the portable layer, it is a per-OS cache of it. No secret is ever committed to the dotfiles repo; files that must be committed get age or gpg encryption instead ^[3].

C-06

SSH authentication keys

One key per install

Host A terminal

Key A — enrolled at the host, attributable to this install

Source of truth

Hardware token, or the vault

⌁ ReplicatorDeliberately none. Two keys, both public halves enrolled ^[23]

Host B terminal

Key B — enrolled at the host, attributable to this install

NoteThis is the one conduit that is intentionally not a conduit. Copying a private key between installs doubles its exposure and destroys your ability to say which machine leaked ^[23]. Two shapes make per-install keys cheap: the 1Password SSH agent, which serves keys to git and ssh without the client ever reading the private key ^[24], or a hardware token.

Exception — detail

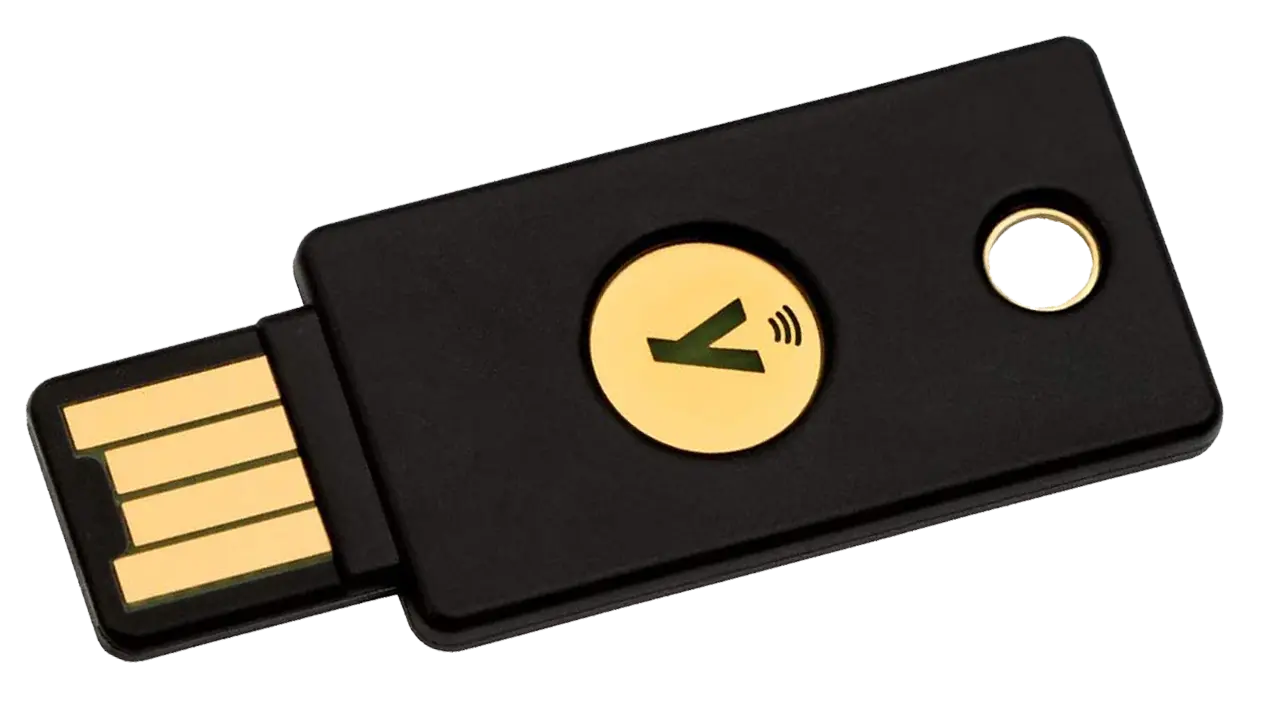

An ed25519-sk resident key is physically single, so the same credential legitimately serves both installs: you plug in and pull the handle back down, and the private key never leaves the hardware ^[22].

Spec

ssh-keygen -O resident, firmware 5.2.3+, FIDO2 PIN set. The same token can sign commits, keeping auth and signing on one device ^[26].

C-07

Git host credentials

Spec'd ⚠

Host A terminal

GCM backend wincredman (default) or dpapi

Source of truth

The git host itself (GitHub, Azure DevOps)

⌁ ReplicatorGit Credential Manager ⭐ 9.1k, swapping its backing store per OS ^[18]

Host B terminal

GCM backend secretservice, or gpg/pass

NoteNever migrate DPAPI blobs — re-authenticate on the Linux side. ⚠ secretservice (libsecret / GNOME Keyring) requires a graphical session, so a headless or SSH-only Linux box falls back to gpg/pass with pinentry configured ^[18]. If you prefer git's own helper, git-credential-libsecret is the modern Linux choice — the old libgnome-keyring helper has been deprecated since 2014 ^[19].

C-08

Commit signing

Spec'd

Host A terminal

Same key file path, resolved by the chezmoi template

Source of truth

SSH public key — gpg.format = ssh

⌁ Replicatoruser.signingkey, commit.gpgsign, gpg.ssh.allowedSignersFile ^[25]

Host B terminal

Same key file path, resolved by the chezmoi template

NoteSupported since git 2.34, and it deletes an entire GPG-agent-per-OS problem from the overlap ^[25]. A FIDO2 -sk key signs commits too ^[26].

C-09

Browser state

Spec'd ⚠

Host A terminal

Signed-in browser profile

Source of truth

Browser sync account

⌁ ReplicatorFirefox / Chrome sync, end-to-end encrypted ^[30]

Host B terminal

Signed-in browser profile

NoteFirefox additionally syncs extension settings and data, which Chrome does not ^[30]. ⚠ Do not treat the browser's password store as the source of truth: Chrome and Firefox sync payloads are cryptographically incompatible, so a browser switch later strands you. The browser is a client of the vault at C-05, not a peer of it.

C-10

IDE settings

Spec'd

Host A terminal

Windows paths, Windows terminal profiles — machine-scoped, and deliberately local

Source of truth

Vendor cloud — VS Code Settings Sync · Rider Backup & Sync

⌁ ReplicatorAccount sign-in on both installs ^[27]^[28]

Host B terminal

Linux paths, Linux terminal profiles — machine-scoped, and deliberately local

NoteSettings, keybindings, snippets, tasks, UI state, extensions and profiles travel; machine and machine-overridable scoped settings are excluded by design — which is exactly what you want for paths and terminal profiles. Keybindings sync per platform by default; toggle settingsSync.keybindingsPerPlatform to unify them ^[27]. Rider's plugin is bundled and on by default, covering themes, keymaps, code styles, live templates and the enabled-plugin list ^[28].

C-11

Documents & media

Spec'd

Host A terminal

Native sync client

Source of truth

Cloud sync (Dropbox, Syncthing)

⌁ ReplicatorNative client on both sides

Host B terminal

Native sync client

NoteFine — these are files, not repos. The distinction is the whole point: a sync folder is a correct home for documents and a catastrophic one for a .git directory (see route R-B).

C-12

Toolchain versions

Spec'd

Host A terminal

SDK installed per machine, version selected by the repo

Source of truth

global.json, committed in the repo

⌁ ReplicatorThe .NET CLI resolves it on both OSes; rollForward: latestFeature ^[33]

Host B terminal

SDK installed per machine, version selected by the repo

NoteThe single highest-leverage file on this sheet: it pins which SDK the CLI uses and accepts later patch/feature bands without per-machine edits. .NET 10 adds a paths field — [".dotnet", "$host$"] — that lets a repo carry its own SDK and stop caring what the host has installed ^[33].

C-13

App config — Outlook, Teams

No conduit · accept the loss

Host A terminal

Outlook profile, Teams desktop client

⊘ Does not travel

Host B terminal

Email and calendar happen in a browser

NoteThe classic Teams desktop client was retired on Linux in favour of a progressive web app ^[29], and there is no new-Outlook desktop client for Linux. Budget this as a known cost of the overlap rather than a problem to solve — the failure mode here is spending a week fighting it.

Plan 2

Abandoned routes

Drawn so they are not built

Do not build

R-A

Shared NTFS / exFAT partition holding a working tree

Severed

Host A

Windows SIDs, no exec bit, case-insensitive

⊗ Route severed Filesystem semantics do not reconcile

Host B

uid/gid, exec bit, case-sensitive, symlinks

It fails at step one. git init on an NTFS mount can fail outright: chmod on …/.git/config.lock failed: Operation not permitted ^[11].
Phantom modifications. The executable bit is not preserved, so git reports changes until you set core.fileMode false — disabling a real signal to work around the medium ^[10]^[9].
Silent case collapse. A repo containing File.txt and file.txt loses one of them on the Windows side; folders differing only by case get merged ^[15].
Symlinks degrade to text. Without SeCreateSymbolicLinkPrivilege or developer mode, git stores them as plain files ^[9].
Ownership never matches. Windows SIDs against Linux uid/gid, papered over with uid=/gid=/dmask/fmask mount options ^[10].
The foundation itself is unsettled in 2026. Field reports on in-kernel ntfs3 include out-of-memory on large copies, hangs and data loss, with the practical advice being to blacklist it and take the slower, reliable ntfs-3g ^[13]. In January 2026 an LKML "ntfs filesystem remake" series argued ntfs3 "still has many problems and is poorly maintained", offering a replacement passing 308 xfstests against ntfs3's 235 ^[12].

Elevation

A shared partition looks like it solves drift — one copy, two OSes. It only moves the divergence into filesystem semantics you cannot reconcile.

Verdict

Both ends still stand. The span does not. Clone twice instead.

R-B

Cloud-sync folder holding a `.git` directory

Severed

Incompatible atomicity assumptions. File sync and transactional VCS disagree about what a write is; a badly timed sync cycle over git's internal files corrupts the repo, and the community verdict is that corruption is a matter of when, not if ^[16]^[17].
The supported shape, if you want it. git-remote-dropbox uses the Dropbox API rather than the desktop client's file operations — Dropbox as a remote, not as a working tree ^[17].
What the sync folder is genuinely for. Research notes, documents, media — see C-11. The rule is about .git, not about Dropbox.

R-C

Repository under `/mnt/c` in WSL2

Severed

Cross-boundary file access runs roughly 2× to 10× slower, and git is disproportionately affected because it stats many files ^[36]. The upstream issue is long-running and well known ^[37] ⭐ 33k.
Same rule as R-A, different mechanism: the working tree belongs on a native filesystem owned by one OS.

R-D

Shared package cache across OSes

Severed

NuGet defaults to %userprofile%\.nuget\packages and ~/.nuget/packages; NUGET_PACKAGES can point both at one path ^[32] — and doing so buys nothing while risking path-encoded breakage.
Caches (NuGet, npm, bun) are derived state. They are deliberately not an asset class on this sheet. Let each install rebuild its own.

R-E

Hand-copying `dotnet user-secrets` between installs

Severed

User secrets live at %APPDATA%\Microsoft\UserSecrets\<id>\secrets.json and ~/.microsoft/usersecrets/<id>/secrets.json — per-user, per-OS, outside the project. The ID in the .csproj is shared; the file is not ^[31].
Treat the vault at C-05 as the source and script the re-seed. Copying JSON by hand creates a second editable copy, which is the one thing this whole sheet exists to prevent.

Detail A

Material selection — dotfile manager

Conduit C-03

Three bars must be cleared at once: real Windows support, per-OS templating from a single branch, and secrets pulled live from a vault rather than committed. Exactly one option clears all three.

Material	⭐ Stars	Windows	Per-OS templating	Secrets	Learning cost
chezmoi Specified	⭐ 21k	✓ ^[1]	✓ Go templates, `.chezmoi.os` ^[2]	✓ Vault integration + age/gpg ^[3]	Medium
yadm	⭐ 6.4k	✓ ^[1]	~ `##os.Linux` alternate files only ^[8]	Encryption yes, vault ✗ ^[1]	Low
GNU Stow	not on GitHub	✗ needs symlinks + Perl ^[4]	✗	✗	Very low
Bare git repo	—	✓ ^[1]	✗	✗ ^[1]	Low
home-manager	⭐ 10k	✗ native; WSL only ^[5]	✓	✓ (sops-nix)	Very high

Counter-view on record

On Hacker News, developers who evaluated Stow and trialled chezmoi report settling on yadm for its lower ceremony ^[7]. Worth knowing — but the friction people hit with yadm is precisely this migration's case: identical content that must live at different paths on different OSes ^[8]. That is chezmoi's home turf.

Why not Nix

home-manager is the technically strongest answer for Linux alone and has no native Windows story — it reaches Windows only through WSL, where Windows programs cannot even follow the symlinks it creates, and git and git bash on Windows emit errors ^[5]^[6]. Right tool, wrong period.

Detail B

Shell parity — known deviations

Tolerances

Detail B · PowerShell 7 on both hosts

Specification

Keep PowerShell as the scripting language on both hosts. One templated profile.ps1 in chezmoi: the paths differ (~/.config/powershell/profile.ps1 on Linux, Documents\PowerShell on Windows) but the content is one file ^[20]^[21].

Do not fight to make it your Linux interactive shell — the ecosystem there (completions, prompts, pipelines, man pages) is bash/zsh/fish-shaped. Put shared logic in .ps1 files invoked from either shell; keep interactive aliases in a chezmoi-templated shell rc.

Terminal emulator: pick a cross-platform one (WezTerm, Alacritty) so keybindings are a single config file rather than Windows Terminal JSON on one side and something else on the other.

What breaks on the Linux host ^[20]

No COM. New-Object -ComObject fails.
No Get-WinEvent, no Get-CimInstance, no ActiveDirectory module. Windows-specific modules are simply not shipped.
Paths become case-sensitive. Get-Item "Report.csv" fails against report.csv — the same class of surprise as the case collapse in route R-A, arriving from the other direction.
.NET Framework-targeted modules will not load. Only .NET (Core) builds.
Remoting over WinRM needs NTLM/Negotiate or Basic-over-HTTPS. No Kerberos.

Detail C

.NET & TS toolchain schedule

Conduit C-12

Concern	Host A · Windows	Host B · Linux	Alignment method
SDK version	Per-machine install	Per-machine install	`global.json` in the repo, `rollForward: latestFeature` ^[33]
User secrets	`%APPDATA%\Microsoft\UserSecrets\<id>\secrets.json` ^[31]	`~/.microsoft/usersecrets/<id>/secrets.json` ^[31]	⚠ Not synced by design — re-seed from the vault
NuGet cache	`%userprofile%\.nuget\packages` ^[32]	`~/.nuget/packages` ^[32]	✗ Do not share — it is a cache; let each rebuild it

Scheme B

Alternate scheme — move the toolchain into the container

For a long overlap

Recommended if the overlap runs long

Scheme B · one environment, described as code

What it is

devcontainer.json is an open specification for describing a development environment — OS, runtime, tools, extensions, services — as code, supported by a range of tools rather than one vendor ^[34]. Microsoft publishes .NET images and documents dev containers specifically as the way to try SDK versions without touching the host install ^[35].

What it buys

The SDK, runtime and tool set stop being per-OS state — they are in the repo, so there is nothing to keep aligned between installs ^[34].
Testing a new .NET version perturbs neither host ^[35].
The container is Linux either way — so your build runs on Linux semantics (case-sensitive, LF, exec bit) from day one on Windows too. You discover porting problems before you switch, not after.

What it does not buy

It covers none of C-03 through C-11: dotfiles, shell, credentials, browser, IDE settings. Every other row of the schedule still applies.
On Windows it runs over WSL2, so route R-C reappears — the repo belongs on the Linux side of the boundary ^[36].

Maint.

Standing orders

Anti-drift, daily

Both installs run chezmoi apply on login. Drift then shows up as a diff, not as a surprise months later ^[1].
Run chezmoi diff before any config edit, so you never edit the materialised file instead of the source ^[1].
Nothing is a source of truth unless it is in a git remote, a vault, or a sync account. If it only exists on one install, it does not exist.
Every unpushed branch is drift. Push daily, even work in progress.
