Score Network Architectures

The backbone evolution of reverse diffusion — from convolutional U-Net through DiT to hybrid rectified-flow transformers — annotated with metrics, code, and 52 citations.

52 sources 9 min read expedition depth Jun 2026

s_θ(x) ≈ ∇_x log p(x)

The single object every denoiser estimates — the score function, gradient of the log-data density. Regardless of whether the network predicts noise ε, clean image x₀, velocity v, or flow drift, it's the same target reparametrised. For Gaussian perturbations: s_θ = −ε_θ/σ. ^[5] ^[1]

Convolutional Era · U-Net Family

2015

U-Net

U-Net family Encoder-decoder + skip connections

Contracting path: two 3×3 convs + ReLU + 2× max-pool per stage; expanding path mirrors with up-convolutions
Skip connections concatenate encoder feature maps into the matching decoder stage — the spatial-detail preservation mechanism diffusion inherited
Outputs same spatial size as input: natural noise-prediction network — no architectural modification needed to produce ε_θ(xₜ, t)
Origin: biomedical image segmentation (Ronneberger et al., 2015); every diffusion U-Net borrows this skeleton verbatim

arXiv 1505.04597 [8]

2021

ADM — Ablated Diffusion Model

U-Net family FID 2.97 · ImageNet 128²

Dhariwal & Nichol ran systematic ablations to turn U-Net into a class-conditional diffusion backbone that beat every GAN on ImageNet
More depth over width; multi-head self-attention (64 ch/head) at 32², 16², and 8² resolutions — coarse features get global context
BigGAN residual blocks for up/downsampling; residual connections rescaled by 1/√2 for training stability
AdaGN(h,y) = y_s · GroupNorm(h) + y_b — sinusoidal timestep embedding + class label injected into every residual block

arXiv 2105.05233 [10]

2022

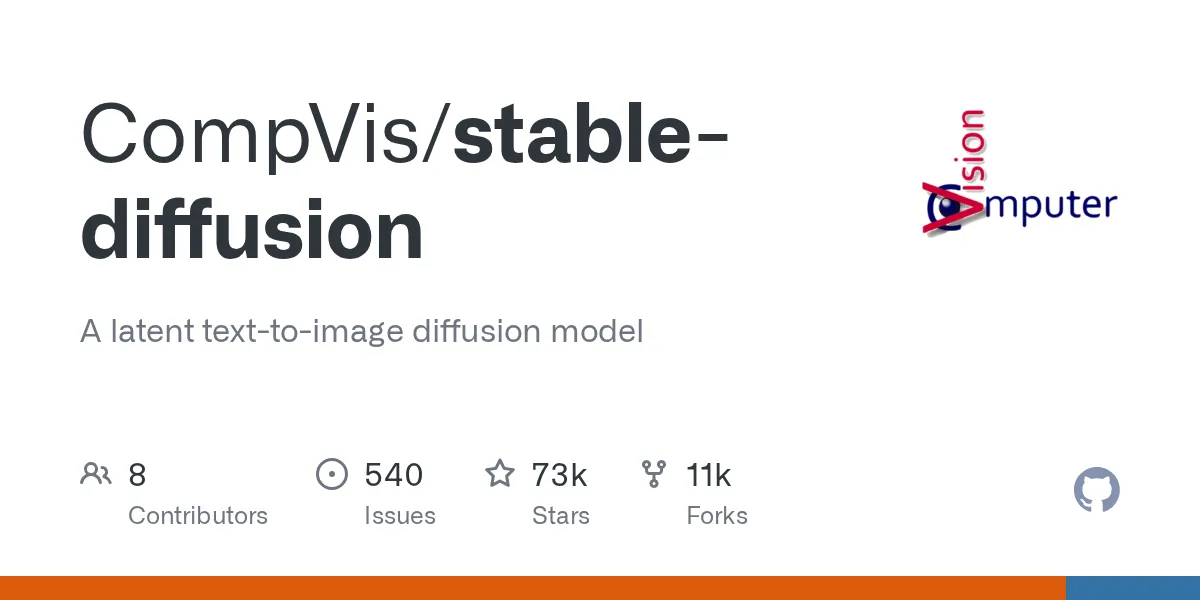

Latent Diffusion / Stable Diffusion

U-Net family ⭐ 73k (CompVis/stable-diffusion) 860M params

Key insight: run the U-Net in a compressed VAE latent space (8× spatial reduction) — slashes compute versus pixel-space diffusion without losing perceptual quality
Augments U-Net with cross-attention layers: text encoder embeddings become keys/values, latent spatial features become queries — the mechanism behind text-to-image control
SD 1.x U-Net: 4 stages, channels {320, 640, 1280, 1280}, 2-3 ResNet blocks per stage + 8-head self-attn + 8-head cross-attn to CLIP-ViT/L (77-token limit)
SDXL (2023) peaked the U-Net lineage at 2.57B params with 1024px native resolution; latent-diffusion ⭐ 14k and huggingface/diffusers ⭐ 33.8k consolidated the ecosystem

arXiv 2112.10752 [12]

Transformer Era · DiT Family

2022

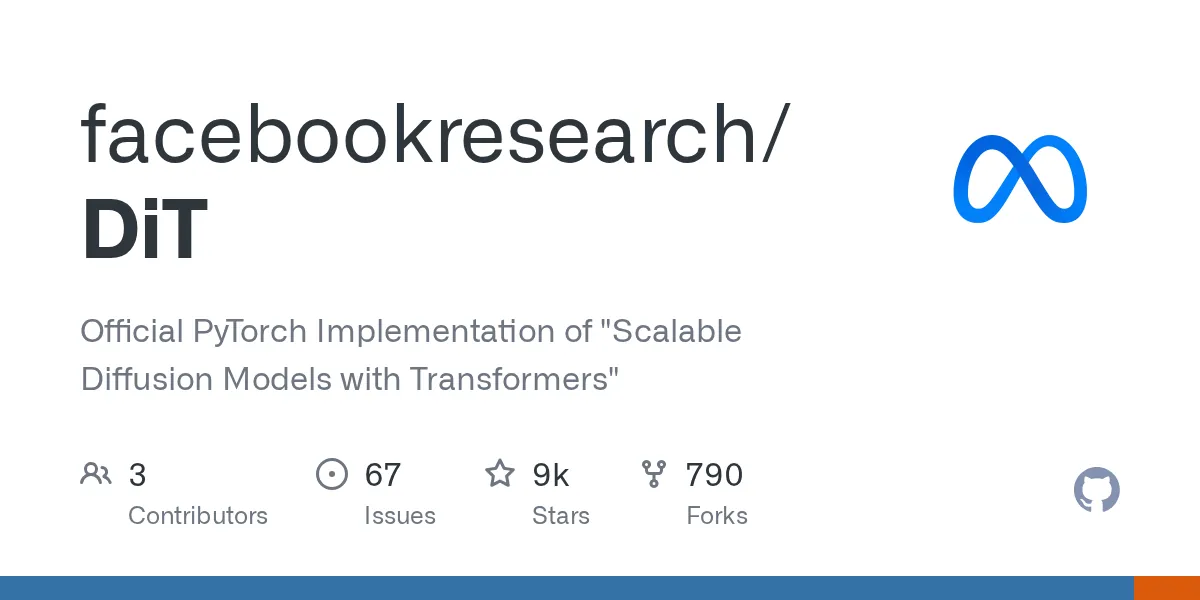

DiT — Diffusion Transformer

Transformer FID 2.27 · ImageNet 256² ⭐ 8.6k

Discards the U-Net entirely. VAE latent (32×32×4) patchified into p×p patches → T = (32/p)² tokens → standard ViT transformer stack
Halving patch size quadruples token count and Gflops; clean monotonic scaling law: higher-Gflops DiTs always achieve lower FID
adaLN-zero: timestep + class embedding regressed into per-block scale/shift; MLP initialised to output zero so every block starts as the identity function
Beats cross-attention and in-context conditioning in FID and compute; established the template every subsequent DiT variant builds on

arXiv 2212.09748 [18] Project page [19]

2024

SiT — Scalable Interpolant Transformers

Transformer FID 2.06 · ImageNet 256² ⭐ 1.2k

Architecture is the DiT backbone verbatim — this paper isolates the formulation variable from the architecture variable
Swaps DDPM diffusion for a stochastic interpolant / flow framework that connects two distributions more flexibly than a fixed SDE
Decouples four design axes independently: discrete vs. continuous time · prediction target · interpolant shape · sampler stochasticity
SiT-XL/2 outperforms DiT-XL/2 at every model size at matched compute — because the sampler's diffusion coefficient can be tuned separately from the training objective

arXiv 2401.08740 · ECCV 2024 [51]

2024

MMDiT / Stable Diffusion 3

Transformer 450M – 8B params

Separate weight sets per modality (image, text) but sequences are joined for a single shared attention operation — maximum cross-modal interaction without forcing shared weights
Trained under reweighted Rectified Flow: straight ODE transport paths, fewer steps viable at inference
Three text encoders: OpenCLIP-ViT/G + CLIP-ViT/L + T5-xxl — escapes CLIP's 77-token limit and visual-contrastive bias
Scales cleanly from 15 blocks/450M to 38 blocks/8B without saturation — empirical proof that attention scales more smoothly than convolution

arXiv 2403.03206 [21] HF model card [41]

2024

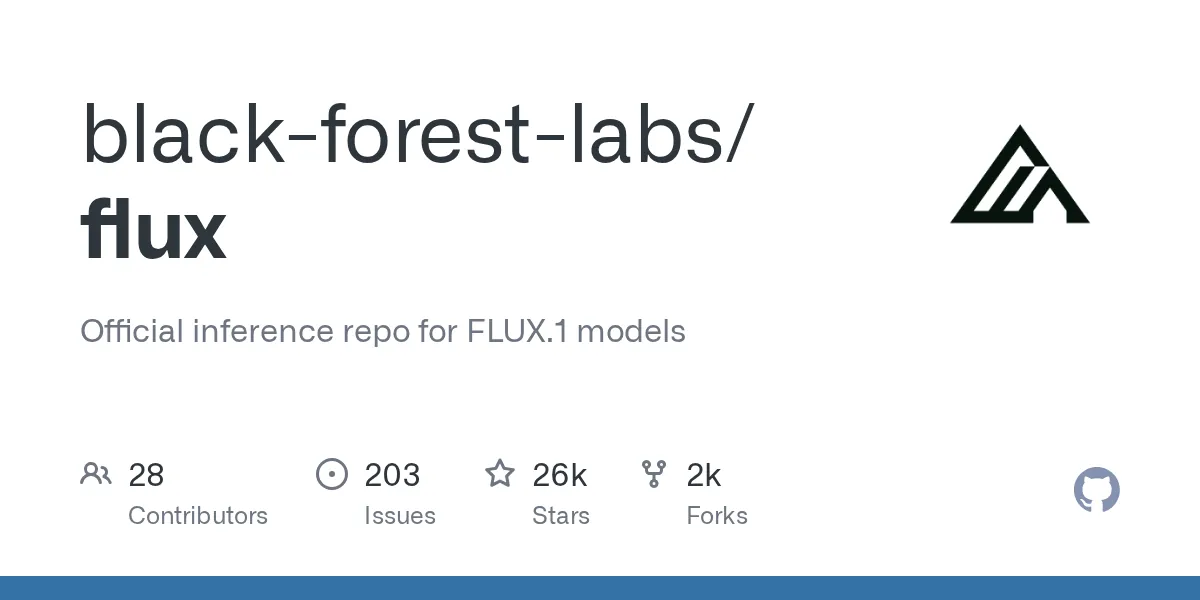

FLUX.1

Hybrid MMDiT + parallel DiT 12B params ⭐ 25.6k

"Double-stream" MMDiT blocks: text + image tokens jointly attended with separate weight sets per modality — deep cross-modal reasoning at every layer
"Single-stream" parallel DiT blocks: unified token sequence with parallel self-attention and FFN pathways for efficient high-capacity processing
Text conditioning via T5-XXL + CLIP: richer language grounding than CLIP-only predecessors, compositional prompts work reliably
12B rectified-flow transformer; FLUX.1 Krea (Jul 2025) explicitly targets photorealism — "overcomes the oversaturated AI look to achieve new levels of photorealism"

HF model card [23] FLUX.1 Krea [42]

2026

Ideogram 4.0

Single-stream DiT · 34 layers 9.3B params

Text and image tokens concatenated into one unified sequence across all 34 layers — no double-stream split, no modality boundary
Uses Qwen3-VL-8B-Instruct as text encoder: brings reasoning and instruction-following into the text understanding pipeline
Best-in-class in-image text rendering — full-sequence single-stream attention means every character token attends to every image region from layer one
Architectural contrast with FLUX.1: Ideogram goes single-stream throughout; FLUX uses double-stream (separate weights) then collapses to single-stream

ideogram.ai [49]

Ecosystem

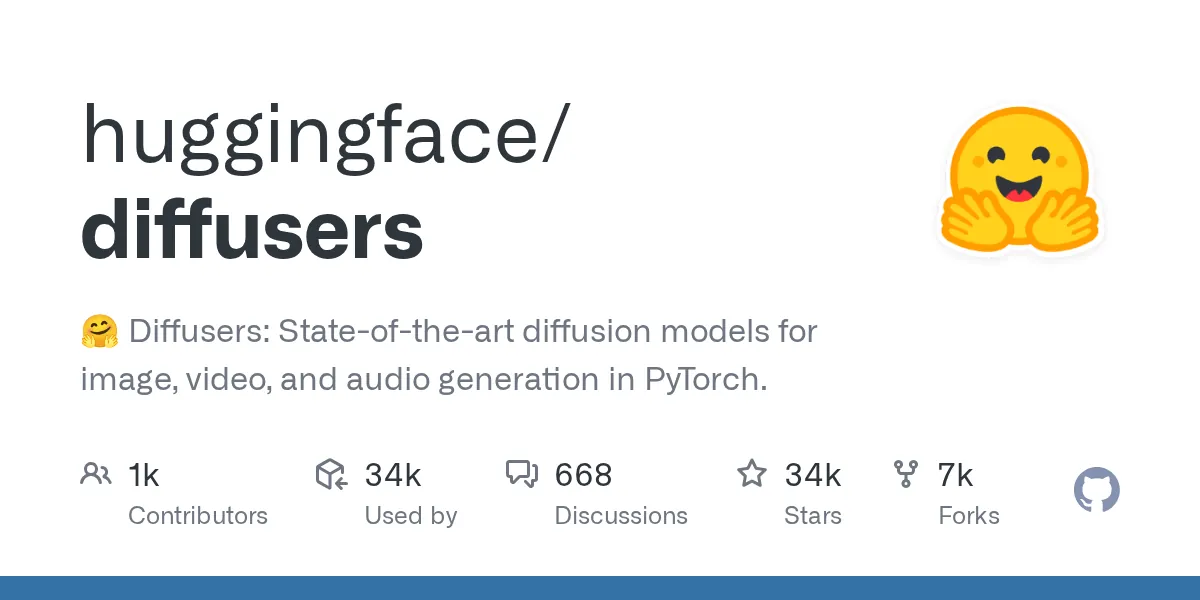

huggingface/diffusers ⭐ 33.8k

The library that packages both eras — UNet2DConditionModel for SD 1.x/SDXL pipelines and Transformer2DModel for DiT-based pipelines — behind a unified DiffusionPipeline interface. The abstraction that made architecture experimentation accessible without hand-wiring every backbone variant. ^[17]

Prediction Targets — Four Parametrisations of the Same Score

Parametrisation	Network outputs	Score identity	Training notes	Src
`ε-prediction`	Added noise `ε`	`s_θ = −ε_θ / √(1−ᾱₜ)`	DDPM default; simplified loss `E‖ε − ε_θ‖²`; constant timestep weight ≡ constant SNR weighting	^[7] ^[36]
`x₀-prediction`	Clean signal `x₀`	`s_θ = (xₜ − x₀_θ) / σ²`	Better behaved at high noise; loss weighting proportional to SNR	^[37]
`v-prediction`	Velocity `v = αₜ·ε − σₜ·x₀`	Interpolates ε and x₀ representations	~Constant-variance target across all t; standard for distillation; Min-SNR weight = SNR / (SNR+1)	^[30] ^[34]
`Rectified flow`	Drift `v = X₁ − X₀`	Straight ODE paths; equals v-pred up to weighting	`Xₜ = t·X₁ + (1−t)·X₀`; straighter paths → fewer viable sampling steps; used in SD3, FLUX.1	^[35]

EDM (Karras et al.) unifies all four: D_θ = c_skip·x + c_out·F_θ(c_in·x; c_noise), selecting coefficients for unit-variance targets at every σ level. ^[31]

Conditioning the Score Network

Cross-attention injection

Text encoder embeddings become keys/values; latent spatial features become queries. Introduced by Latent Diffusion, used by SD 1.x and PixArt-α. Imagen showed frozen T5-XXL outperforms CLIP on compositional prompts. ^[12]^[40]

adaLN-zero

Scale/shift parameters regressed from summed timestep + class/text embedding; residual modulation zero-initialised. DiT found this beats cross-attention and in-context conditioning at matched compute. Dominant in all MMDiT-lineage models. ^[20]

Classifier-free guidance

Jointly train conditional + unconditional model. Combine score estimates at inference: ε̂ = ε(x,∅) + w·(ε(x,text) − ε(x,∅)). The guidance_scale knob literally scales how hard the conditional score gradient pulls the sample toward the prompt. ^[38]

Current Systems (2026)

System	Backbone	Target	Text encoders	Src
SD 1.x	U-Net + cross-attn	ε-prediction	CLIP-ViT/L (77 tok)	^[14]
SD3.5	MMDiT + adaLN + QK-norm	Rectified flow	OpenCLIP-ViT/G + CLIP-ViT/L + T5-XXL	^[43] ^[44]
FLUX.1 (12B)	Hybrid MMDiT + parallel DiT	Rectified flow	T5-XXL + CLIP	^[23] ^[24]
Ideogram 4.0 (9.3B)	Single-stream DiT, 34 layers	—	Qwen3-VL-8B-Instruct	^[49]
Sora (OpenAI)	DiT over spacetime patches	—	Undisclosed	^[25]
Midjourney	Closed / undisclosed	Undisclosed	Undisclosed	^[48]

Efficiency frontier: Distillation (knowledge, progressive, consistency, score, adversarial) collapses sampling to 1–4 steps using these same backbones — LCM in latent space, SDXL-Turbo in one adversarial step, SDXL-Lightning via progressive adversarial distillation. ^[46] The forward edge beyond that is hybrid AR+diffusion transformers — GPT Image, HunyuanImage 3.0, Transfusion — blending sequence modeling and diffusion objectives into unified multimodal generation pipelines. ^[50]
